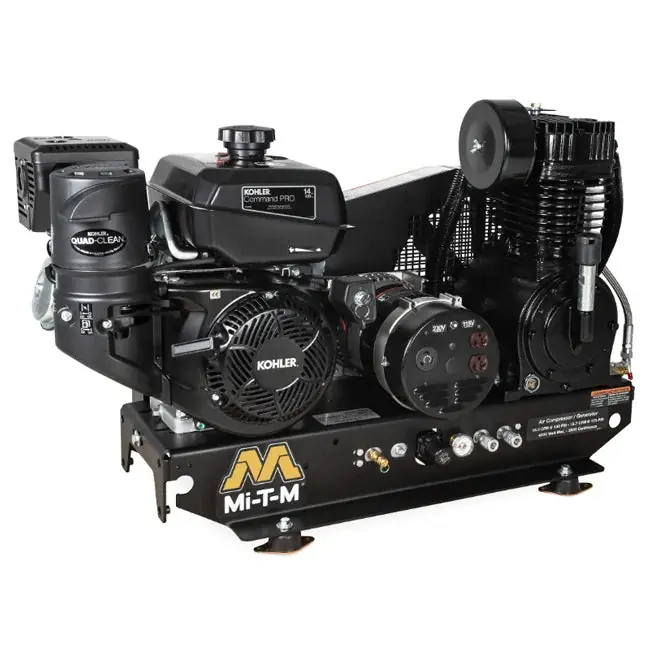

Popular Mi-T-M AG2-SK14-BE – Base-Mount Two Stage Gasoline Combination Air Compressor / Generator

Mi-T-M AG2-SK14-BE – Base-Mount Two Stage Gasoline Combination Air Compressor / Generator

MODEL: AG2-SK14-BE

AG2-SK14-BE

Combining two machines into one, this air compressor/generator combination unit is great for completing multiple jobs requiring both air power and electricity.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator
Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles

Frame
3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16 ½-inch fly wheel · Quality pilot valve unloader

Note: All gasoline MODEL:s sold in California are required to have a CARB compliant engine. Consult factory.
Equipped with 150-PSI maximum rated regulator.
Equipped with electric start – battery, box and cables not included.

Optional Accessoriess (Not Included)

AX-0063 Lifting Hook – For easier portability

AX-0070 Battery Tray, Box and 2-Foot of Cables – Attaches to engine side of unit

AX-0016 Battery, Battery Tray, Box and 2-Foot Cables – Attaches to engine side of unit

Specifications

CFM @ PSI: 16.4 @ 90

CFM @ PSI: 15.7 @ 175

Alternator Wattage: Max. Output: 4000 watts

Alternator Wattage: Cont. with Comp. On-Load: 2300 watts

Alternator Wattage: Cont. with Comp. Off-Load: 3500 watts

Displacement/ Engine: 429cc Kohler CH440 OHV

Net Weight: 332.00 lbs.

Shipping Weight: 397.00 lbs.

Length: 47.00 in.

Width: 22.00 in.

Height: 28.00 in.
