Mi-T-M AM1-PE15-20M – 20-Gallon Single Stage Electric Air Compressor Popular

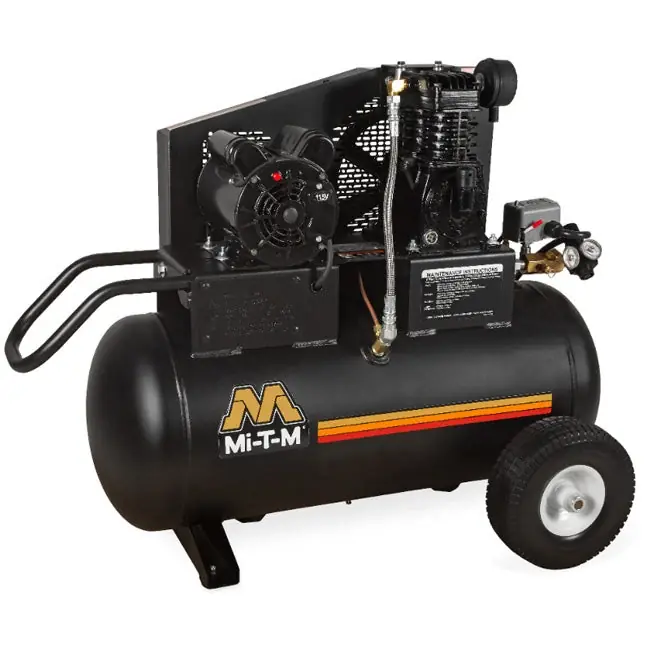

Mi-T-M AM1-PE15-20M – 20-Gallon Single Stage Electric Air Compressor

MODEL: AM1-PE15-20M

AM1-PE15-20M

The 20-gallon electric air compressor easily provides the power needed for projects where running multiple air tools is a necessity.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Motor
Auto start/stop – continuous run optional · Thermal overload motor protection · 8-foot power cord

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tires

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 10-inch fly wheel · Industrial-grade pressure switch

Optional Accessoriess (Not Included)

AX-0002 Auto Drain/Regulator/Plastic Bowl – Drains moisture from air system

AX-0003 Manual Drain/Regulator/Metal Bowl – Drains moisture from air system

AX-0027 Stationary Kit – Converts the portable MODEL: to a stationary MODEL:, removes the wheels and adds the stationary leg

AX-0008 Dual Control – Compressor can be operated in start/stop mode or continuous run where pilot valve exhausts air to atmosphere

Specifications

CFM @ PSI: 7.3 @ 90

Horsepower/Motor: 1.5 HP, 120V, 13.2A

Plug Type: NEMA 5-15P

Net Weight: 196.00 lbs.

Shipping Weight: 265.00 lbs.

Length: 40.00 in.

Width: 24.00 in.

Height: 32.00 in.
