Mi-T-M ABS-9KD-30H – 30-Gallon Two Stage Diesel Air Compressor Save Now

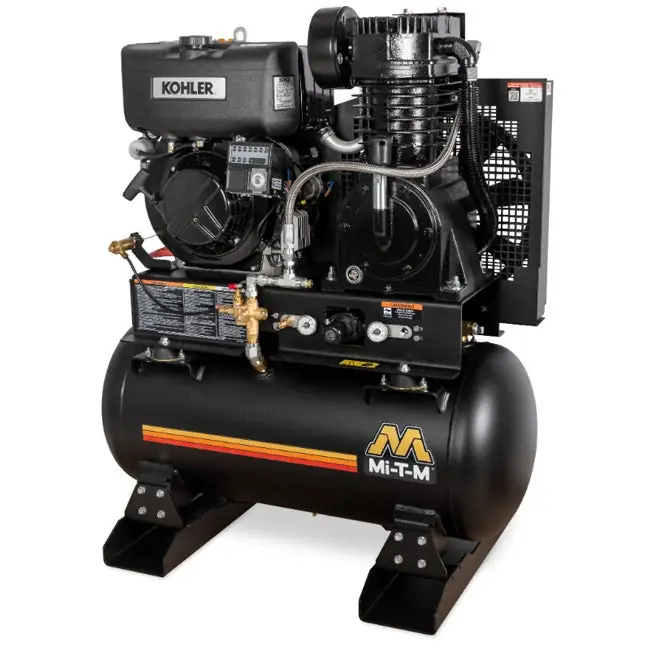

Mi-T-M ABS-9KD-30H – 30-Gallon Two Stage Diesel Air Compressor

MODEL: ABS-9KD-30H

ABS-9KD-30H

This two stage diesel-powered air compressor provides consistent and reliable air power for industrial, automotive and service body applications.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Engine
Electric start – battery, box and cables not included · Glow plug equipped for easy starting in cold temperatures

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
Regulator and two gauges for tank and outlet pressure · ASME safety valves · Tank drain valve

Equipped with 150-PSI maximum rated regulator.

Optional Accessoriess (Not Included)

IX-0001 Vibration Isolator Pads – Isolators protect the unit from vibration during use; recommended for MODEL:s that are mounted in service truck applications

AX-0079 Battery Box, Cables & Tray – Attaches to engine side of unit

Specifications

CFM @ PSI: 29.0 @ 175

Horsepower/Engine: 9.1 HP Kohler KD440 OHV

Engine Idle Control: Cable Throttle

Net Weight: 483.00 lbs.

Shipping Weight: 540.00 lbs.

Length: 38.00 in.

Width: 23.00 in.

Height: 46.50 in.
