Markdown Mi-T-M AES-46315-120HM Air Compressor 460V, 3 Ph, 19A

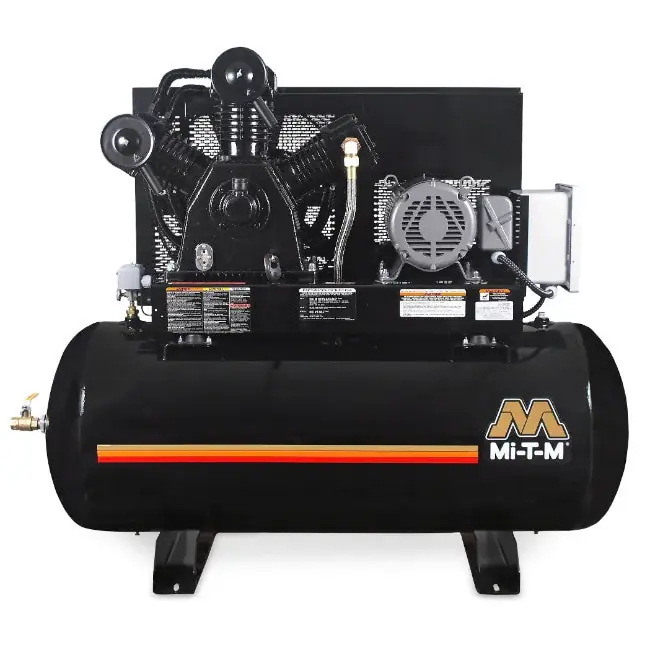

Mi-T-M AES-46315-120HM – 460V, 3Phase, 19.0A – AES M Series 15.0 HP Simplex Horizontal – 120-Gallon Air Compressor

MODEL AES-46315-120HM

120-Gallon

AES M Series – 15.0 HP Simplex Horizontal

The M Series air compressors are available in many motor configurations and offer maximum air power day-in and day-out.

CompressorPump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve

Models Available
AES-20315-120HM 200V, 3Phase, 44.0A 1208 lb. ship wt./1058 lb. net wt.
AES-23315-120HM 230V, 3Phase, 38.0A 1193 lb. ship wt./1043 lb. net wt.
AES-46315-120HM 460V, 3Phase, 19.0A 1193 lb. ship wt./1043 lb. net wt.

Accessories (Not Included)

Specifications

CFM @ PSI: 46.5 @ 175

Pump RPM: 990

Tank Size: 120-gallon

Bolt Down (LxW): 34.5 x 23.5 in.

Net Weight: 1043 lb.

Shipping Weight: 1193 lb.

Length: 74.00 in.

Width: 26.50 in.

Height: 58.00 in.
