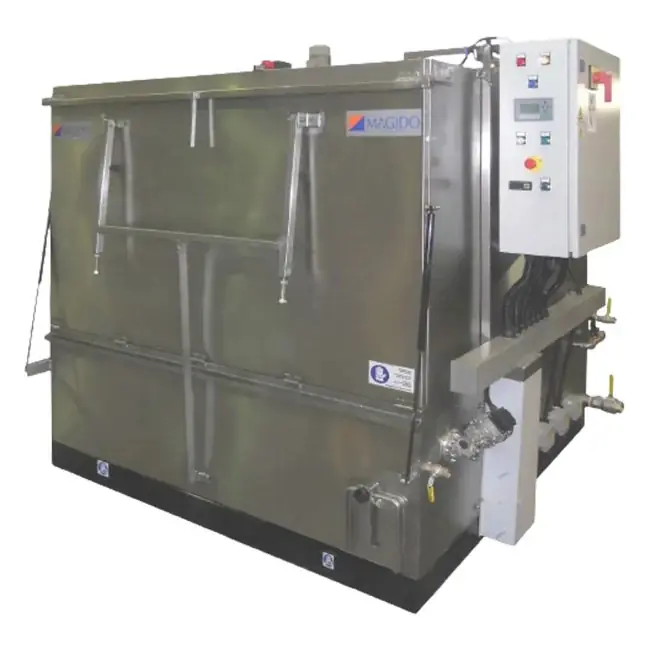

MAGIDO ECO-HD L-919E Jet-Spray Parts Washer – Enhanced Size and Heat Capacity In Demand

MAGIDO ECO-HD L-919E Jet-Spray Parts Washer – Enhanced Size and Heat Capacity

MODEL: L-919E

The ECO-HD L-919E Jet-Spray Parts Washer steps up the game with its expansive 51”x 51“ turntable and 35.5” working height, accommodating parts up to 1,500 lbs. This model boasts a 109-gallon wash tank capacity and mirrors the power of the L-916 with its 7.5-HP wash pump. What sets the L-919E apart is its increased 30kW tank heater, guaranteeing your cleaning solution is heated rapidly and maintained at an ideal temperature for the most challenging cleaning tasks.

Key Features

Substantial Heating: The 30kW tank heater prepares your wash solution quickly, ensuring efficient operation.

Dimensions: The L-919E’s dimensions are a substantial 139” in length, 79” in width, and 82.5” in height when the door is open.

Additional Features: This model can include an optional drain pump and steam exhaust fan, augmenting its performance and convenience.

THESE ARE BUILD TO ORDER 14-16 WEEKS TO SHIP

Standard Features

304 Stainless Steel Construction

Stainless Steel Pump

Rotary Spray Manifolds

Electric Heating Elements

Fluid Level Sensor With Auto Fill

Rollout Stainless Steel Turntable

Stainless Steel Spray Bars With Optimized V-Jet Nozzles

304 Stainless Steel Chip Basket

Fold Down Door Closure

Digital Thermostat Controller

E-Stop

Main Power Disconnect Switch

Available Parts Washer Options (Not Included Sold Seperately)

Oil Skimmer

Drain Pump

Natural Gas Tank Heater

Hours Counter

24/7 Programmable Tank Heat Controller

Specification:

Turntable: 51” x 51“ (304 Stainless Steel)

Working Height: 35.5”

Rotary Spray Bars: 2 (304 Stainless Steel)

Maximum Load Weight: 1,500 lbs.

Wash Tank Capacity: 109 gallons

Wash Pump: 7.5-HP, 145 GPM at 58 PSI

Tank Heater: 30kW

Drain Pump (Optional): ½ HP/21 GPM

Steam Exhaust Fan: 1/3 HP

Maximum Operating Temperature: 160°F

Voltage: 460 3-Phase

Dimensions (Door Open):

Length: 139”

Width: 79”

Height: 82.5”
