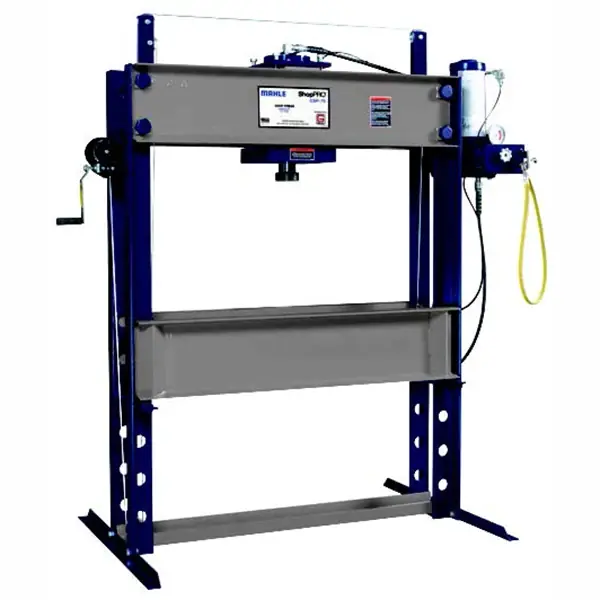

Mahle CSP-75 – 75 ton Shop Press with out Accessory Kit

MODEL CSP-75

Part Number: 485 80066 00

Side-to-Side ram adjustments

Adjustable bolster with six positions

4-Way mountable air/hydraulic pump

Winch cable for raising and lowering the bolster

Gray engineered and built power units

Additional Models
Part Number: 485 80067 00 CSP-75K 75 Ton Shop Press with Accessory Kit
Recommended Accessories Part Number: 485 80068 00 Mountable Guard (for each side)
Recommended Accessories Part Number: 485 80069 00Accessory Kit

Specifications

Capacity 75 Tons (68,039 kg)

Power Source Air/Hydraulic

Stroke 8.8 in (22.2 cm)

Horizontal Ram Travel 32 in (81 cm)

Throat Width 50 in (127 cm)

Inside Throat Depth 8 in (20 cm)

Outside Throat Depth 14 in (25 cm)

Required Air Pressure 120 to 200 psi (8.3 to 13.8 bar)

Adjustment Increments 6 in (15 cm)

Vertical Throat Minimum 9.5 in (24.1 cm)

Vertical Throat Maximum 39.5 in (100.3 cm)

Dimensions (H x W x D) 85 in x 78 in x 44 in (216 cm x 198 cm x 112 cm)
