Fresh Stock Mi-T-M ADD-46310-120H Air Compressor 460V, 3 Ph, 26.8A

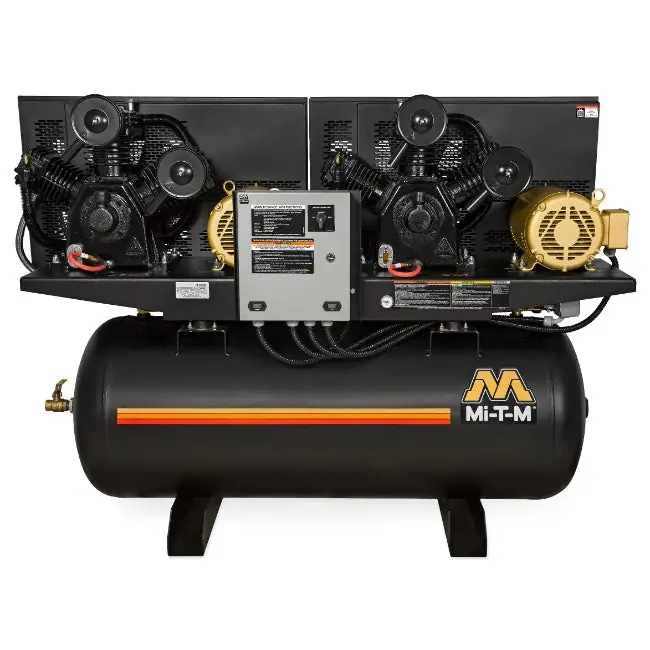

Mi-T-M ADD-46310-120H – 460V, 3Phase, 26.8A – ADD Series 10.0 HP Duplex Horizontal – 120-Gallon Air Compressor

MODEL ADD-46310-120H

120-Gallon

ADD Series – 10.0 HP Duplex Horizontal

These horizontal 120-gallon units are specifically designed to finish jobs quickly and efficiently in workshops, service bays and more.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · 3 position switch – compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump)

Models Available
ADD-23110-120H 230V, 1Phase, 78.0A 1373 lb. ship wt./1223 lb. net wt.
ADD-20310-120H 200V, 3Phase, 61.6A 1333 lb. ship wt./1183 lb. net wt.
ADD-23310-120H 230V, 3Phase, 53.6A 1313 lb. ship wt./1163 lb. net wt.
ADD-46310-120H 460V, 3Phase, 26.8A 1313 lb. ship wt./1163 lb. net wt.

Accessories (Not Included)

OPTIONS: Options must be ordered with unit and cannot be added later. (Not all are Included) add options in the notes at checkout

IX-0001 Vibration Isolator Pads – Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

IX-0006 Electric Tank Drain – Automatically drains liquid from compressor tank

IX-0032 Pneumatic Tank Drain – Automatically drains liquid from compressor tank

IX-0034 After Cooler – Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient

IX-0064 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level

IX-0065 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level

IX-0066 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level

Specifications

CFM @ PSI: 68.4 @ 175

Pump RPM: 990

Tank Size: 120-gallon

Bolt Down (LxW): 34.5 x 23.5 in.

Net Weight: 1163 lb.

Shipping Weight: 1313 lb.

Length: 74.00 in.

Width: 26.50 in.

Height: 58.00 in.
