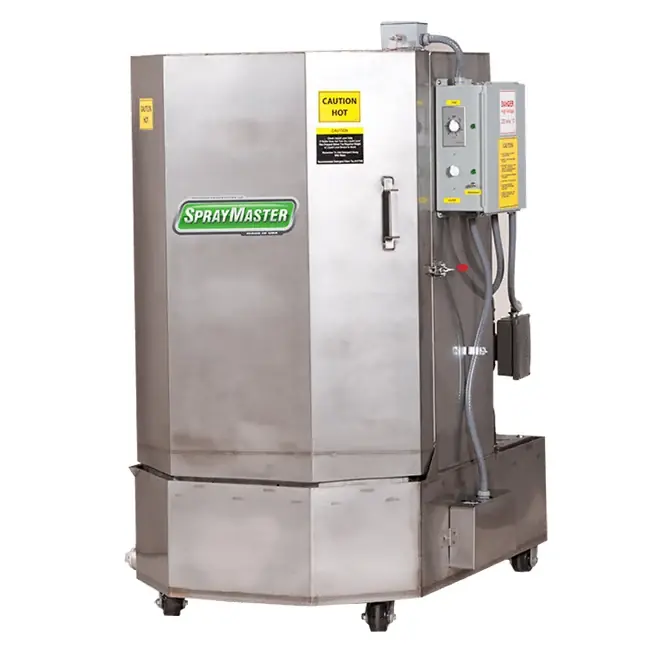

FOUNTAIN INDUSTRIES SprayMaster SM9800SS-233 125-Gallon Stainless Steel Front Loading Spray Wash Cabinet PN 65055-01

Part Number: 65055-01

The Fountain Industries SprayMaster SM9800SS-233 is a heavy-duty 125-gallon front-loading spray wash cabinet constructed entirely from stainless steel. Designed for industrial-scale aqueous cleaning, it features a 52 in. turntable, 5.0 HP high-volume pump delivering 140 GPM at 50 PSI, and three 4.5 kW heaters (13.5 kW total). With a load capacity of 2000 lbs and a 52 in. work height, this cabinet handles large parts with ease. Includes stainless steel nozzles, disc skimmer, center spray bar, and gasket-free door. A liquid level sensor protects heaters, and optional 7-day timer and auto-fill functions are available.

Features:

All stainless steel tank and cabinet

125-gallon tank capacity

52 in. turntable with 2000 lb. load capacity

52 in. inside working height

Three 4.5 kW heaters (13.5 kW total heating capacity)

5.0 HP pump delivers 140 GPM at 50 PSI

22 stainless steel nozzles

Adjustable cycle timer (0–60 minutes)

Adjustable heat timer for overnight solution heating

Stainless steel gasket-free front door for leak-free operation

12 in. disc skimmer with 45-minute timer

Liquid level sensor shuts off heaters to prevent damage

Fold-down center spray bar for smaller parts

Removable tree rack included

Optional: 7-day timer and automatic fill

Specifications

Tank Capacity: 125 gallons

Electrical: 220 VAC / 60 Hz / 3 Phase

Power Consumption: 13.5 kW (60 Amps estimated)

Meets 0.75 freeboard requirements

Inside Tank Dimensions: 52 in. Diameter Turntable x 52 in. Working Height

Overall Dimensions: 60 in. L x 54.5 in. W x 77 in. H

Shipping Weight: 1800 lbs
