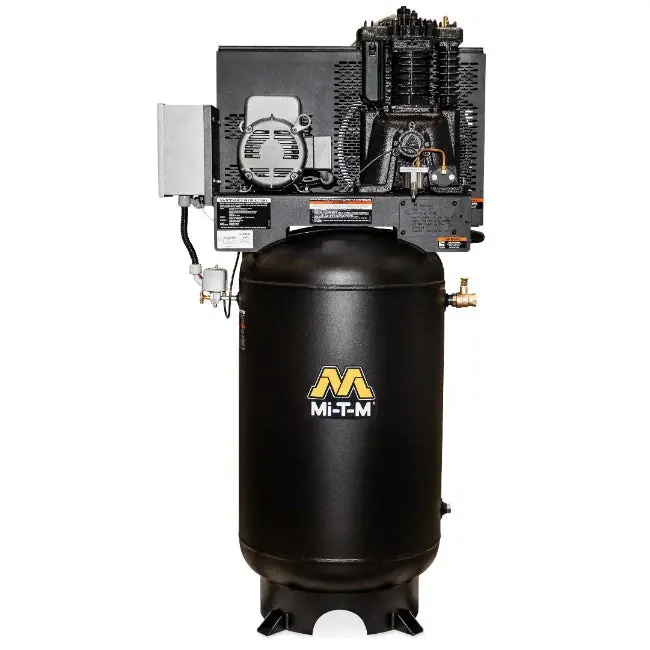

Flash Sale Mi-T-M ACS-20305-80VM Air Compressor 200V, 3 Ph, 16.1A

Mi-T-M ACS-20305-80VM – 200V, 3Phase, 16.1A – ACS M Series 5.0 HP Simplex Vertical – 80-Gallon Air Compressor

MODEL ACS-20305-80VM

80-Gallon

ACS M Series – 5.0 HP Simplex Vertical

The M Series air compressors are available in many motor configurations and offer maximum air power day-in and day-out.

CompressorPump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve

Models Available
ACS-23105-80VM 230V, 1Phase, 23.0A 661 lb. ship wt./589 lb. net wt.
ACS-20305-80VM 200V, 3Phase, 16.1A 660 lb. ship wt./588 lb. net wt.
ACS-23305-80VM 230V, 3Phase, 13.8A 660 lb. ship wt./588 lb. net wt.
ACS-46305-80VM 460V, 3Phase, 6.9A 660 lb. ship wt./588 lb. net wt.

Accessories (Not Included)

Specifications

CFM @ PSI: 18.0 @ 175

Pump RPM: 860

Tank Size: 80-gallon

Bolt Down (LxW): 15.63 x 15.63 in.

Net Weight: 588 lb.

Shipping Weight: 660 lb.

Length: 33.00 in.

Width: 25.00 in.

Height: 73.00 in.
